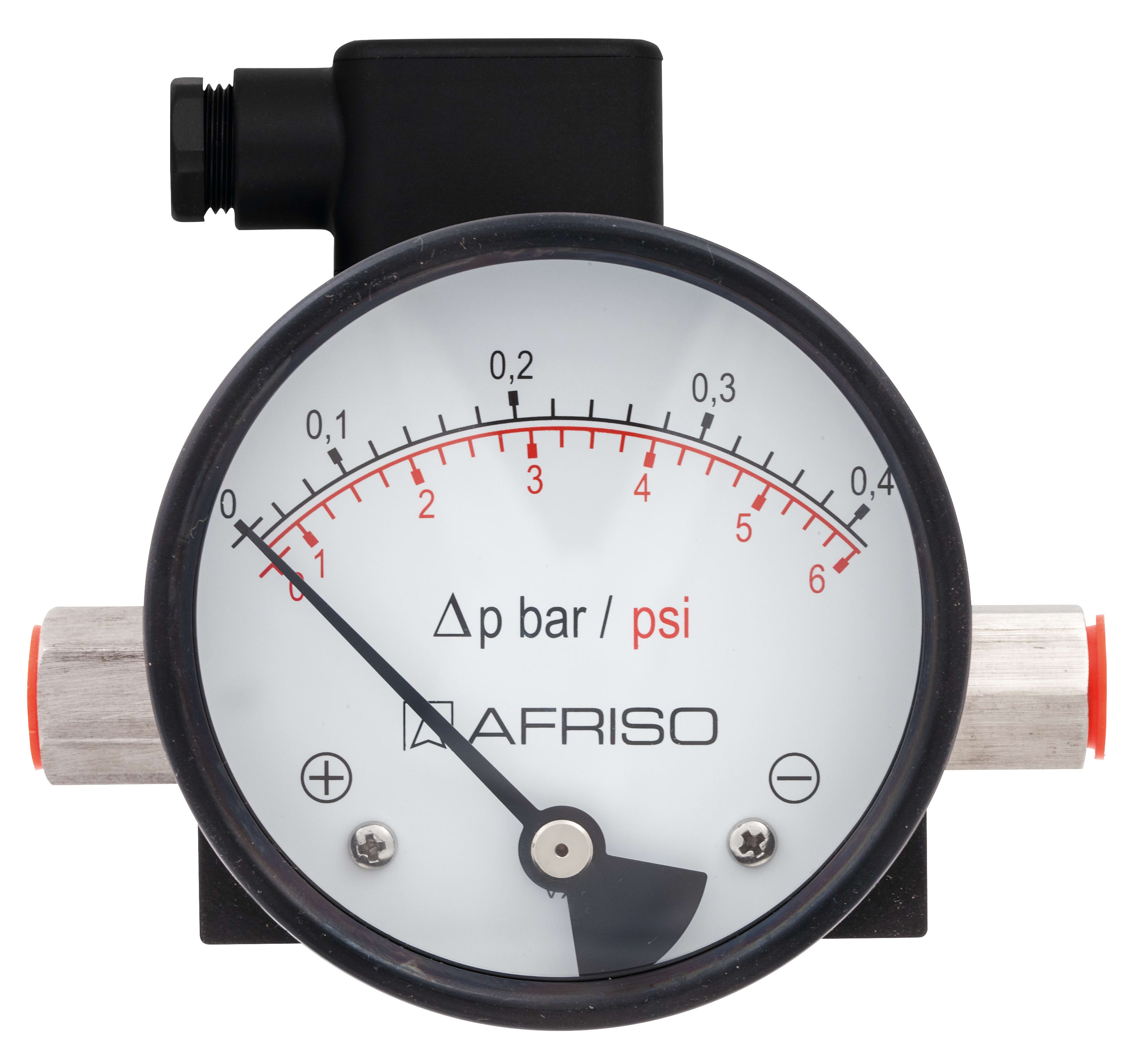

Images 3 MAG80Dif RK1.W D312 Magnetic piston pressure gauges Variants Downloads Variants Technical data Technical drawings Downloads Variants Typehousing ⌀Housingaccuracy classConnectionAusrichtungRangeTypeTypePart no.MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/0.25 barMAG80Dif RK1.WD31288022312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/0.4 barMAG80Dif RK1.WD31288023312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/0.6 barMAG80Dif RK1.WD31288024312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/1 barMAG80Dif RK1.WD31288025312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/1.6 barMAG80Dif RK1.WD31288026312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/2.5 barMAG80Dif RK1.WD31288027312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/4 barMAG80Dif RK1.WD31288028312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/6 barMAG80Dif RK1.WD31288029312MAG80Dif RK1.W D31280 mmStainless steel 3042 x G¼ female thread0/10 barMAG80Dif RK1.WD31288030312 in-stock items manufactured goods Technical data TypeMAG80Dif RK1.W D312Nominal size80accuracy± 3 % of full scale value(at increasing differential pressure)ranges0/0.25 barOverpressure safetyup to the maximum static pressure at both endsmaximum static pressure100 barOperating temperature rangeMedium: max. 80 °CAmbient: 0/80 °CDegree of protectionIP 65 (EN 60529) Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Anschluss rechts und links, seitlich mit Grenzsignalgeber Maße (mm) Downloads dials for pressure gauges – graduation technical information PDF English German (Germany)
